225P (Encl.6 / Hazardous) Series, NEMA 4X, 7, 9 & 13 Pressure Switch/Tamper Proof

  • A sealed piston sensor with a efficient Nega-Rate® Belleville disc spring makes this switch well suited for high impulse hydraulic applications with tamper-proof set point.
  • Electrical Connection: 1/2 NPT male conduit connection with PVC insulated 18 AWG, 18″ long leads.
  • Deadband (Differential): The deadband can be selected anywhere from the minimum tabulated to a maximum of 45% of the set point
  • Electrical: Snap action electrical switch assembly listed by Underwriters’ Laboratories, Inc., FM Approval and CSA International
  • Pressure Connection: 1/4 NPT Female
  • Temperature Range:*
    Ambient: -40°F to +180°F (-40°C to +82°C)
    Media: -40°F to +300°F (-40°C to +149°C)
    *Temperature limits change with O-Ring selection. See Electrical Assembly specification sheet for Temperature Class Ratings
  • Shipping Weight:  3 pounds
  • The 225P series is suited to weather proof application. Enclosure 6.

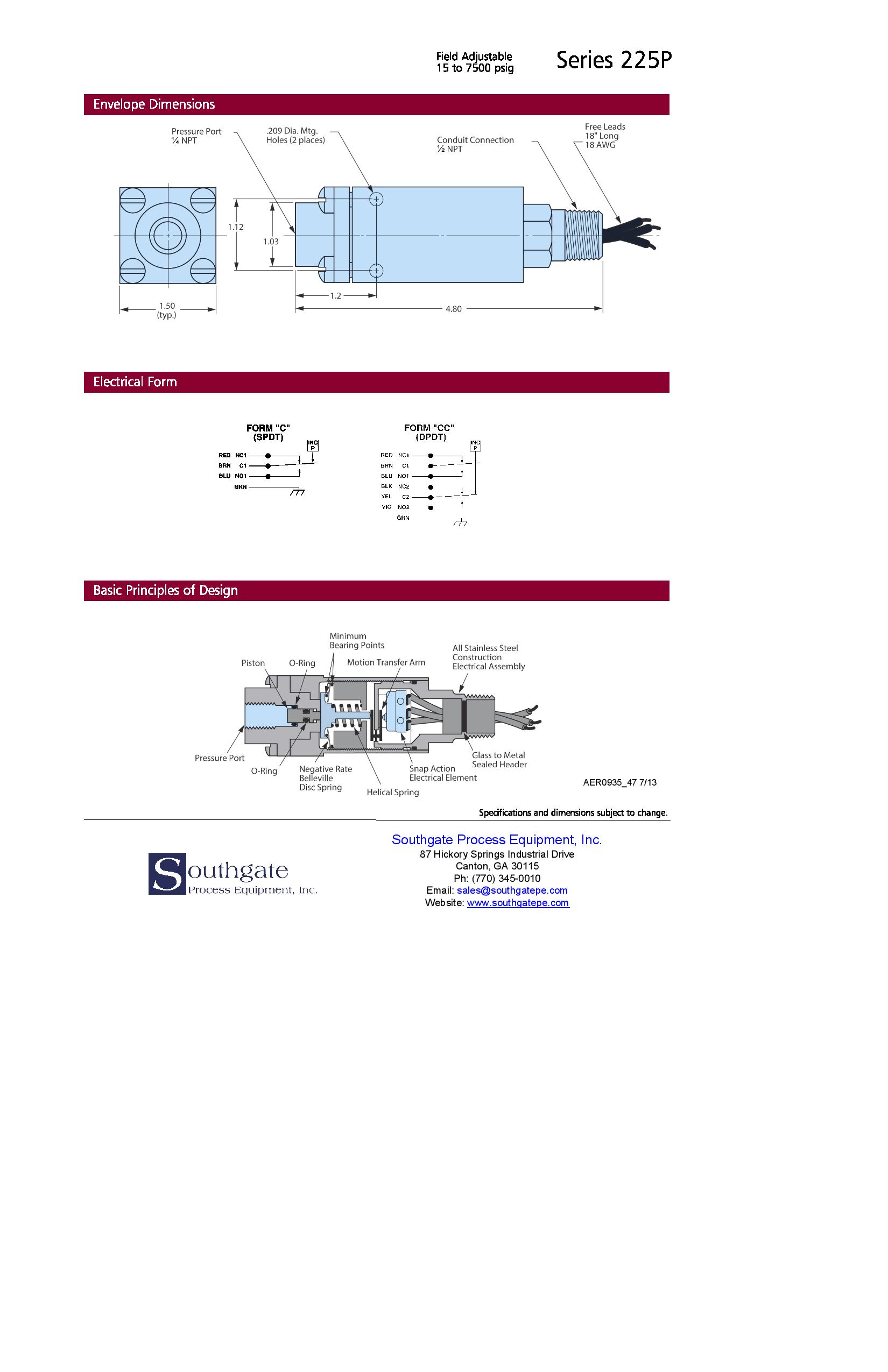

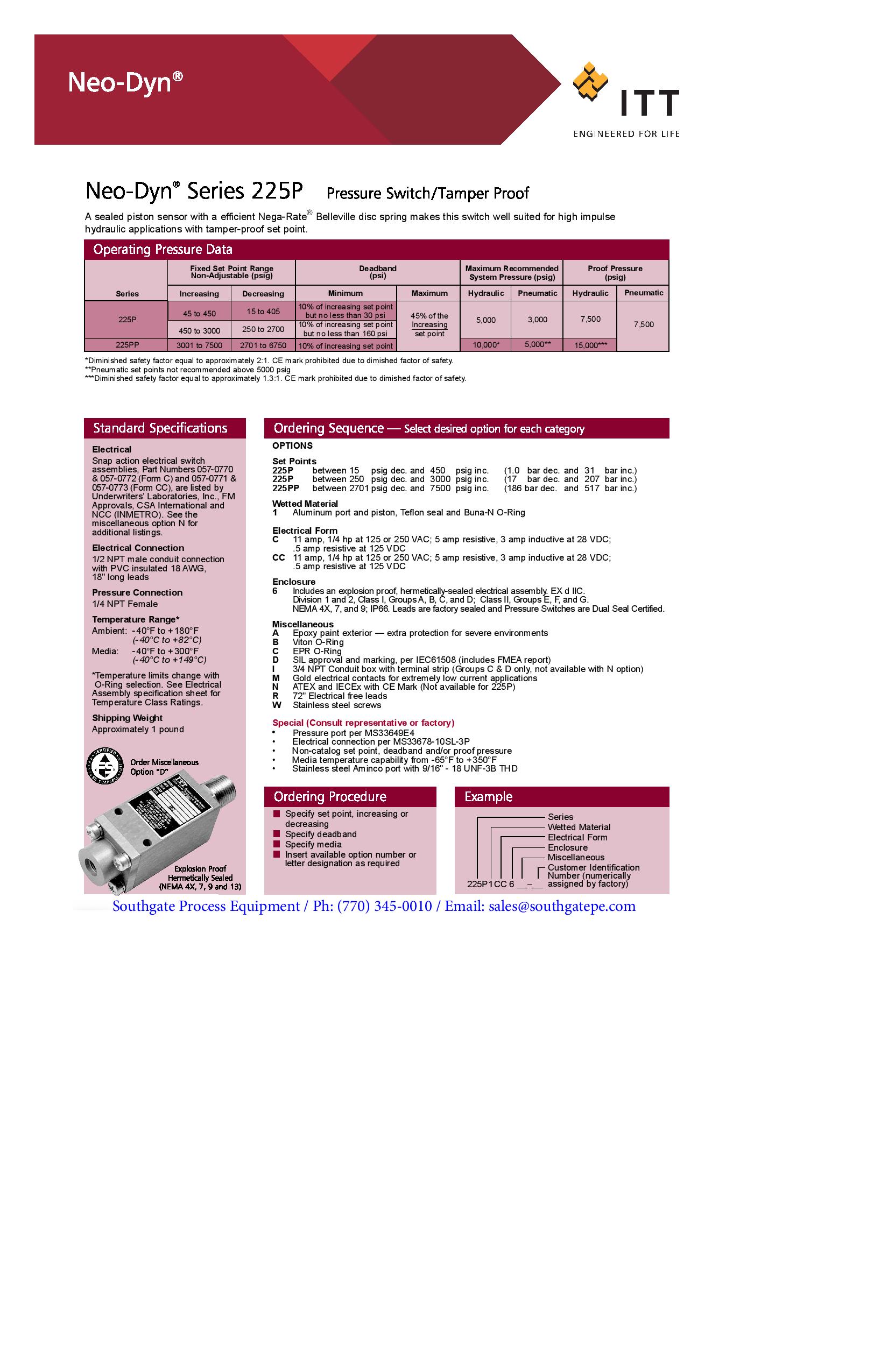

ITT Neo-Dyn 225P (Enclosure 6) General Data Sheets





Click here for downloadable brochure
