Heat Exchanger Design

Southgate Process Equipment has been an authorized distributor for HED for over 25 years. Let us help you with all your customized heat exchanger needs. Click here to request a quote or call us @ (770) 345-0010.

Heat Exchanger Design, Inc. has and continues to service a worldwide customer base for pressure vessels and heat exchangers.
HED, Inc. is an ASME authorized manufacturer.  We design and fabricate heat exchangers and pressure vessels according to TEMA, API, ASME Section I and VIII, Division I, and other industry recognized standards as well as offering full compliance with customer specification.  We also provide the National Board of Boiler and Pressure Vessels Inspectors Registration for any vessels manufactured according to ASME code. For our customers based in Canada, we have had extensive experience in obtaining CRNs.

Shell and Tube Heat Exchangers

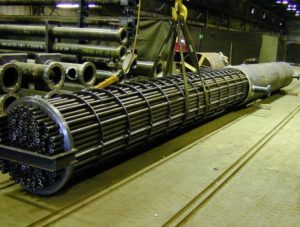

Heat Exchanger Design, Inc. offers shell and tube exchangers starting at 2″ IPS in all TEMA types. We design and fabricate to ASME code and TEMA standards. Our shell and tube line utilizes bare tube (straight and u-tubes), helical low-fin outside, longitudinal fins (inside & outside are available). These exchangers are suitable for a variety of applications and are offered in fixed tube sheets or removable bundles. The surface area ranges from (1) square foot to 40,000 square feet. Pressure range is from full vacuum to over 14,000 PSI (limited by size, material and design condition).

Hairpin Heat Exchangers

HEAT EXCHANGER DESIGN,INC. offers a complete line of Hairpin Exchangers. These exchangers provide true counter-current flow and are especially suitable for extreme temperature crossing, high pressure, high temperature, and low to moderate surface area requirements.
Our Hairpin Exchangers are available in single tube (Double Pipe) or multiple tubes within a hairpin shell (Multitube), bare tubes, finned tubes, U-tubes, straight tubes (with rod-thru capability), fixed tube sheets and removable bundle.
The surface area ranges from (1) square foot to 6,000 square feet (Finned tubes).
Pressure capabilities are full vacuum to over 14,000 PSI (limited by size, material, and design condition).
Hairpin Exchangers are designed and fabricated per ASME code, and TEMA standards.

Waste Heat Boilers

Waste Heat Boiler
72 in. OD x 20 ft. long

Waste Heat Boiler
98 in. OD x 20 ft. long
Heat Exchanger Design, Inc. has decades of experience in the design and manufacture of Waste Heat Boilers.

Sulfur Condensers

HED design and manufacture condenser chiller using plain and 10-fin tubes both for flooded and direct expansions application. Since HED’s inception, the design and manufacture of Sulfur Condensers has varied dramatically in size from a mere 10 in. up to as much as 106 in. diameter using steel and alloy materials.



Other Types of Heat Exchangers HED can provide

AIR COOLERS
DOUBLE PIPE EXCHANGERS
CHILLERS CONDENSERS
REBOILERS
ECONOMIZERS
TANK COIL HEATERS
WATER HEATERS
STEAM CONDENSERS
TANK SUCTION HEATERS
FUEL OIL HEATERS
INDIRECT FIRED HEATERS
AFTER COOLERS
INTER COOLERS
SEPARATORS
PRESSURE VESSELS
REPLACEMENT TUBE BUNDLES
REPAIR AND RETUBING
HOT WATER STORAGE TANKS
Contact us for more information on the above products:
Email: sales@southgatepe.com
Phone: (770) 345-0010

REQUEST A QUOTE
