160P Series, NEMA 4 & 13 Differential Pressure Switch
- Mid-range, adjustable differential pressure switch. Efficient Nega-Rate® Belleville disc spring sensing mechanism. Weather proof enclosure and stable set points during system pressure changes makes this switch ideal for a wide variety of applications.
- Electrical: Snap action electrical switch recognized by Underwriters
Laboratories, Inc. and CSA International Laboratories, Inc. and CSA International - Electrical Connection: 1/2 NPT female conduit connection with terminal block.
- Pressure Connections:1/4 NPT Female
- Temperature Range:*
Ambient: -40°F to +180°F (-40°C to +82°C)
Media: -40°F to +250°F (-40°C to +121°C)
*Media temperature limits change with O-Ring selection - Adjustment: Concealed wrench flat adjustment with range scale.
- Shipping Weight: 3.5 pounds
- Enclosure 3.

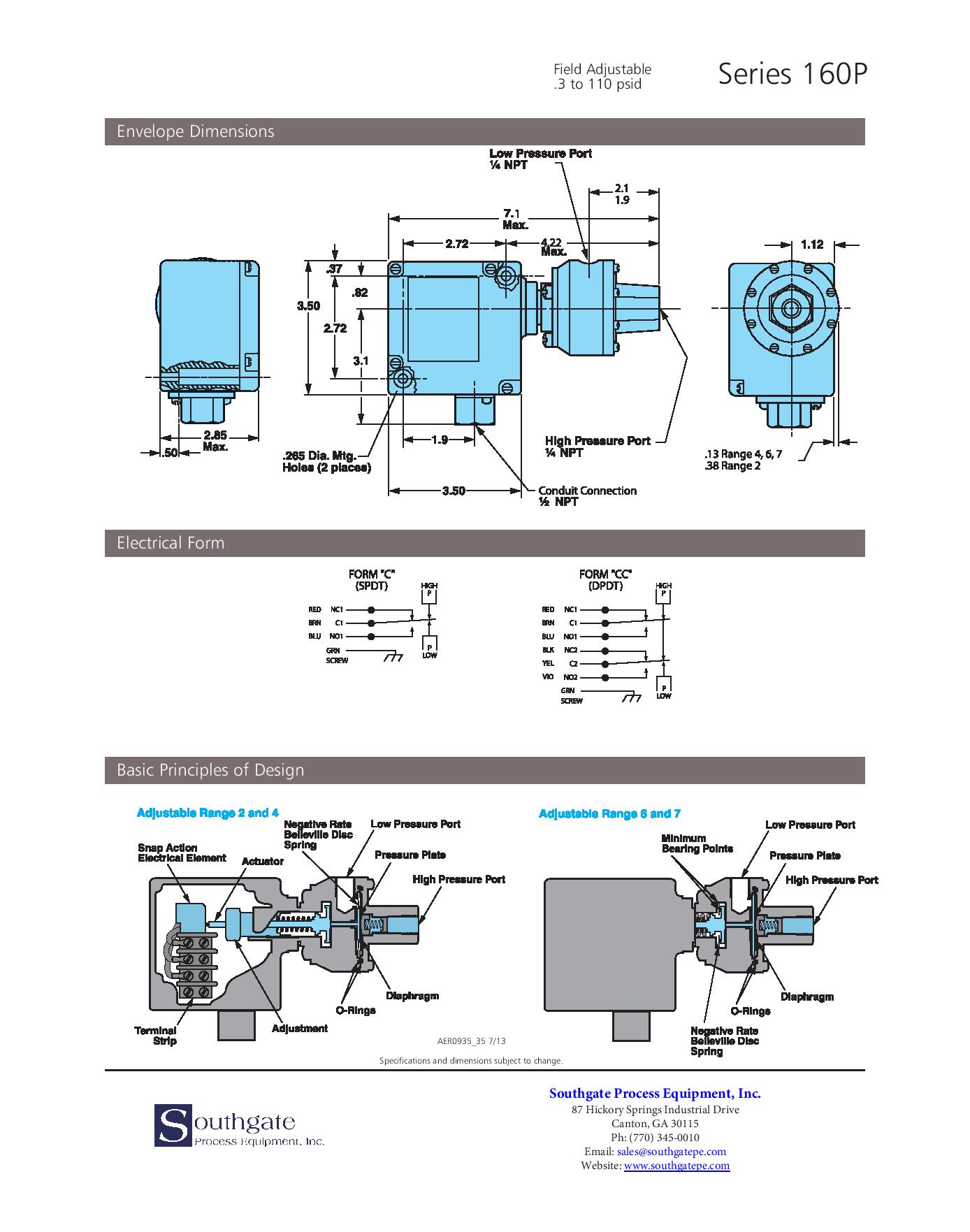

ITT Neo-Dyn 160P General Data Sheets
Click here for downloadable brochure
Contact us for more information or for quick and competitive pricing on all of our ITT Neo-Dyn switches.
