Model B300S / SX2000U - Xylem / Standard Xchange
Heat Exchangers for Steam Service
|Type:||U-tube – Removable Bundle, Shell & Tube Heat Exchanger|
|Manufacturer||Standard Xchange (Xylem) / formally ITT Standard|
|Tube Diameter||B300: 3/4″ Copper / SX2000U: 3/8″ Copper|
|Features||Carbon Steel Shell Side Materials|
|*||Cast Iron Bonnets|
|*||Shellside Design 150 PSI – 375 Deg. F / Tubeside Design 150 PSI – 375 Deg. F|
|*||Other material options are available. Please contact us: Email: email@example.com Phone: (770) 345-0010|
U-tube heat exchangers, 2, 4, and 6 pass models covering areas as large as 1900 square feet. Shell Diameters from 4″ to 29″ OD. 3/4″ OD Tubes. ASME Code constructed. B300S is designed for Steam applications or B300W for Water applications. SX2000U uses 3/8″ OD tubes.
- Expediting options are available please contact us for more information (770) 345-0010.
- Applications: For heating water or other fluids, using steam or water as the heating/cooling medium.
- Standard Units have normally a (1-3) week delivery.

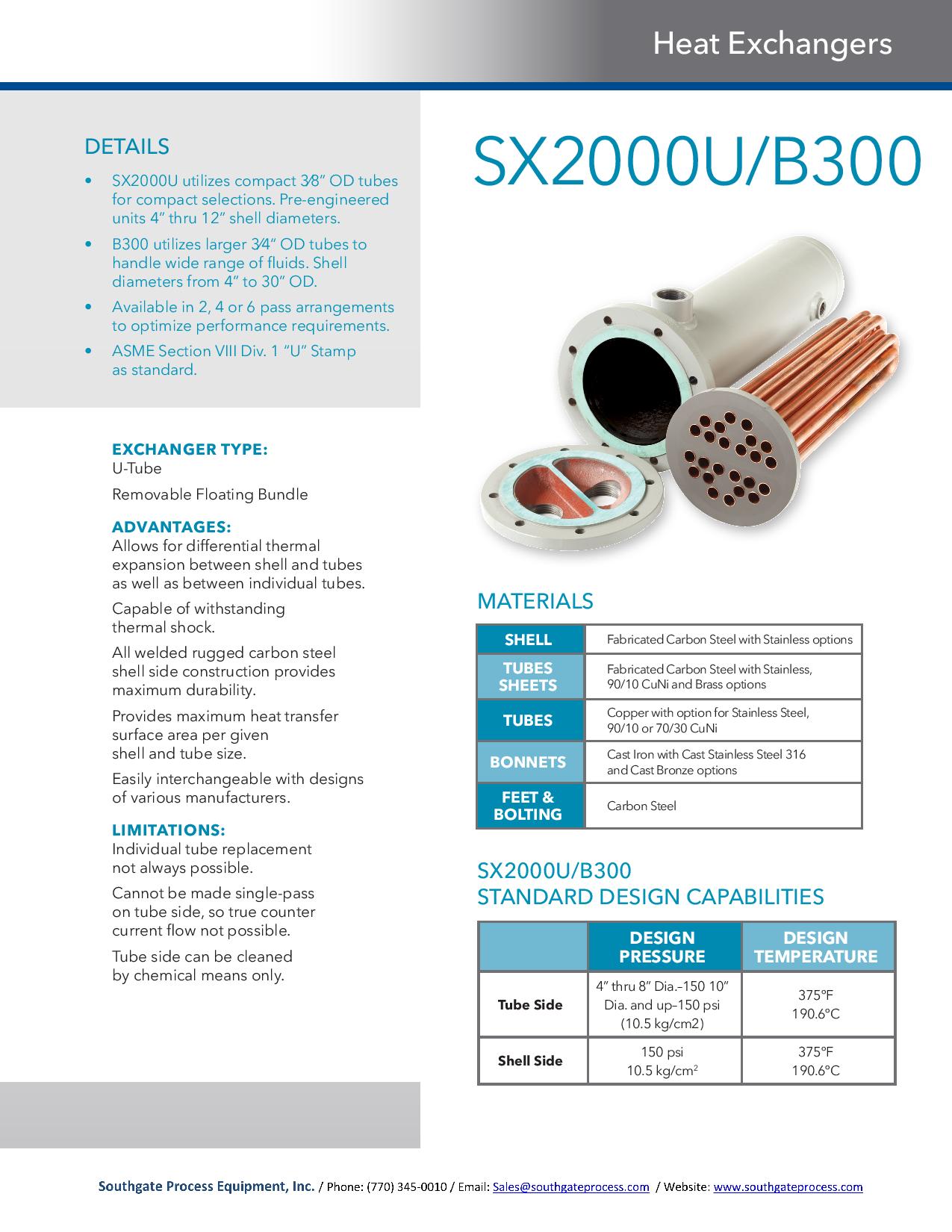

Standard Xchange Model: B300 / SX2000U Brochure
